EAGLE PREMIUM PIT

Cod: EC683EU00200

The new Paytec system EAGLE Premium is an integrated solution but easily scalable to smartly meet the increasing needs of the market.

Login for more details

Catalogue

    Download catalogue

    Enter your email address to download our catalog

    The system is controlled and managed by the proven Caiman unit, which, in addition to directly managing the cashless part through the Caiman reader, also controls the new EAGLE Smart changegiver.

    In this way, audit and configuration information remains stored. and available on the Caiman unit and not on the coin mechanism.

    The Caiman unit can also control other MDB peripherals(e.g. a bill acceptor, a credit card reader or payment Apps) in order to get an even more complete payment system.

    The EAGLE Smart changegiver relies on a consolidated coin recognition and selection technology and on increased ability to optimize change. The removable coin box makes the changegiver extremely versatile in terms of tube configurations.

    The Caiman reader makes it possible to read/write Paytec PIT keyssafely and rapidly.

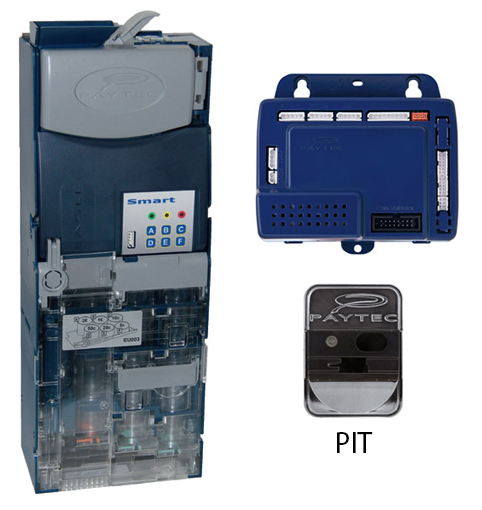

    Product: Caiman (EXE or MDB-MDB) + PIT key reader + EAGLE SMART 6-tube coin acceptor + MDB cable

    Protocol: Executive, MDB Master, MDB Slave

    Audit: Standard EVA-DTS format and extended audit, downloadable via IrDA (port integrated on the reader), Key / Data Card, PayTools, BT6002, PC

    Configuration: With PayTools App via BT6002 or USB cable, via P6000, Configurator software on PC, Data Key/Card

    Diagnostics: (for the changegiver) With PayTools App via BT6002 or USB cable, via P6000 (sensors only), Configurator software on PC

    Aggiornamento: SIB

    Main changegiver functionalities:

    • Removable coin box, sensor detecting when the selector or the coin box is removed, coin box security lock (optional)
    • Management notifications on MDB protocol
    • 30 coin channels

    Main cashless functionalities:

    • Price Holding mode, management of other MDB peripherals, double cashless MDB
    • 100 prices/discounts, list 10/100 prices for cashless MDB 1 and 2
    • “Selection first” mode available for credit card
    • Direct recharge of Paytec keys from credit card reader, recharge between cashless MDB
    • Sales notifications cash/cashless
    • Management of notifications from MDB changegiver
    • Auto-programming of PIT keys
    • Recycling mode
    • 4 special discount levels (10 prices),user groups, time bands, free vends, free credits, bonus at recharging, calendar bonus, bonus menu, fidelity function, black list, key pre-payment, key code conversion
    SKU: EC683EU00200 Categories: ,
